The CTT 392-16 offers a 16t maximum capacity and delivers a strong load chart across all jib lengths from 25m to 75m in 5m increments. Its maximum freestanding height varies according to the type of tower mast standard configuration: 72.45m, 98.35m, 73.05m or 73.20m.

The CTT 392-10 provides a choice of three hoist winches – 45 kW, 67 kW and 80 kW – allowing customers to tailor performance and energy consumption to specific project requirements.

Ease of erection and maintenance has been a key focus in the crane’s design, with innovative solutions that simplify assembly and dismantling procedures, as well as servicing operations, all while ensuring a safer working environment.

Key Features

• Max jib length: 75 m (230 ft)
• Capacity at max length: 3.5 t (4 USt)
• Max capacity: 16 t (18 USt)

---

---

---

---

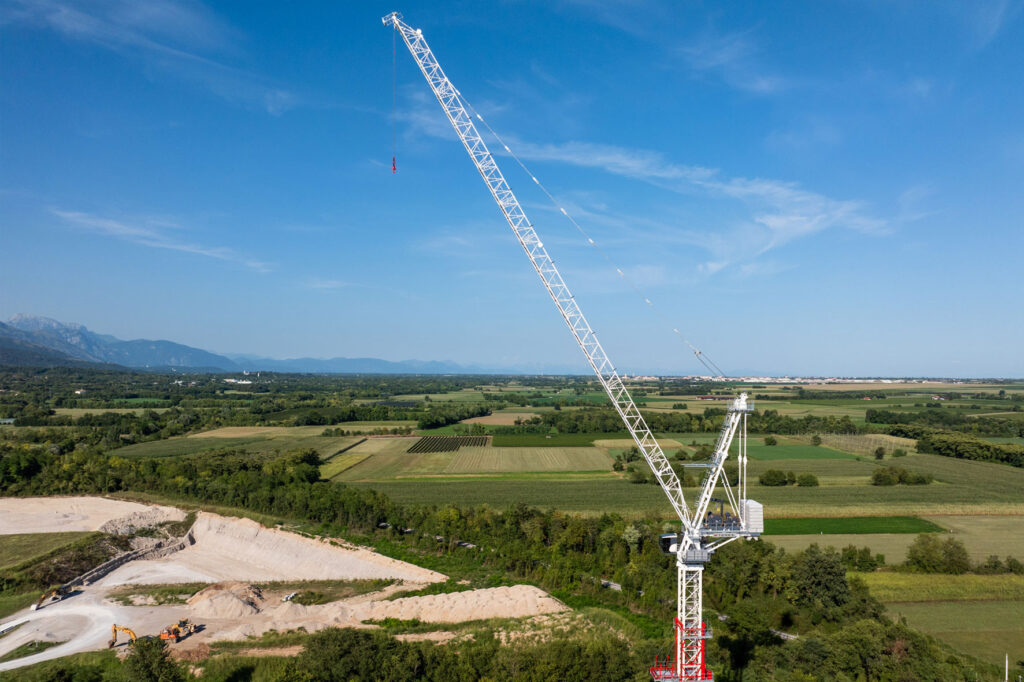

The CTL 702-32 is a new luffing jib tower crane that emphasizes control, safety, and efficiency to transform construction sites by enabling safer and faster project completion. It boasts a 70m jib length with a maximum lifting capacity of 32 tons (up to 28m jib), offering up to 6-ton capacity at 70m jib.

The crane’s highly competitive free-standing height capabilities provide additional versatility for high-rise and large-scale projects. Equipped with a powerful luffing motor, the CTL 702-32 delivers speed and reliability, making it an indispensable tool for any job site.

Key Features

• Max jib length: 70 m (230 ft)
• Capacity at max length: 6.02 t (6.64 USt)
• Max capacity: 32 t (35 USt)

---

---

---

---

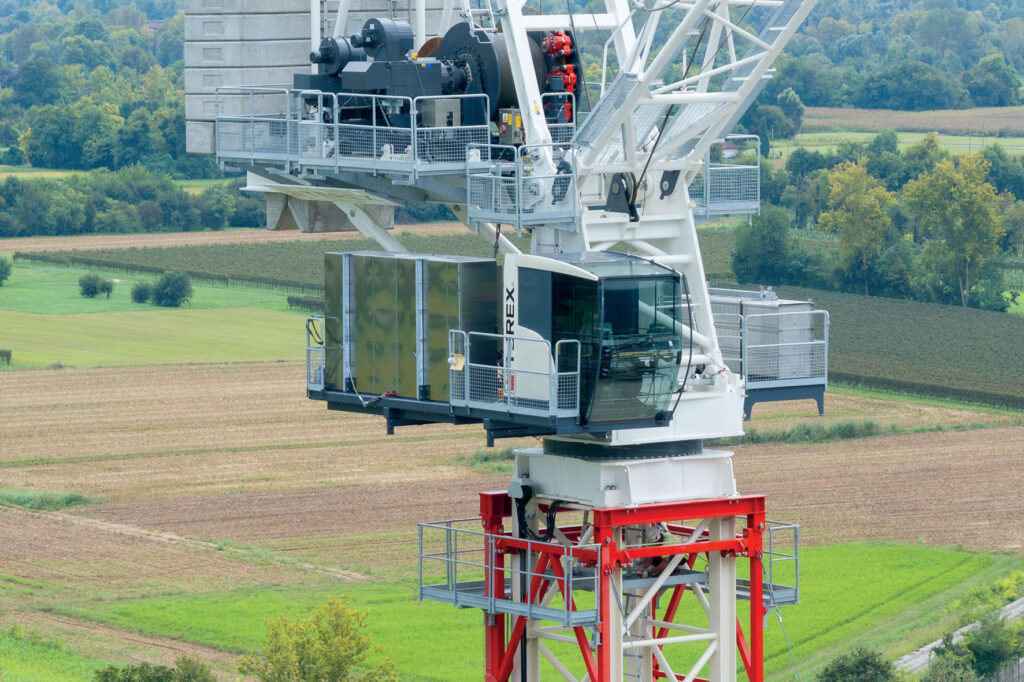

The CTL 712-45 is a new luffing jib tower crane that emphasizes control, safety, and efficiency to transform construction sites by enabling safer and faster project completion. It boasts a 70m jib length with a maximum lifting capacity of 45 tons (up to 18,38m jib), offering up to 5,8-ton capacity at 70m jib.

The crane’s highly competitive free-standing height capabilities provide additional versatility for high-rise and large-scale projects. Equipped with a powerful luffing motor, the CTL 712-45 delivers speed and reliability, making it an indispensable tool for any job site.

Key Features

• Max jib length: 70 m (230 ft)
• Capacity at max length: 5,8 t (6.4 USt)
• Max capacity: 45 t (50 USt)

---

---

---

---
